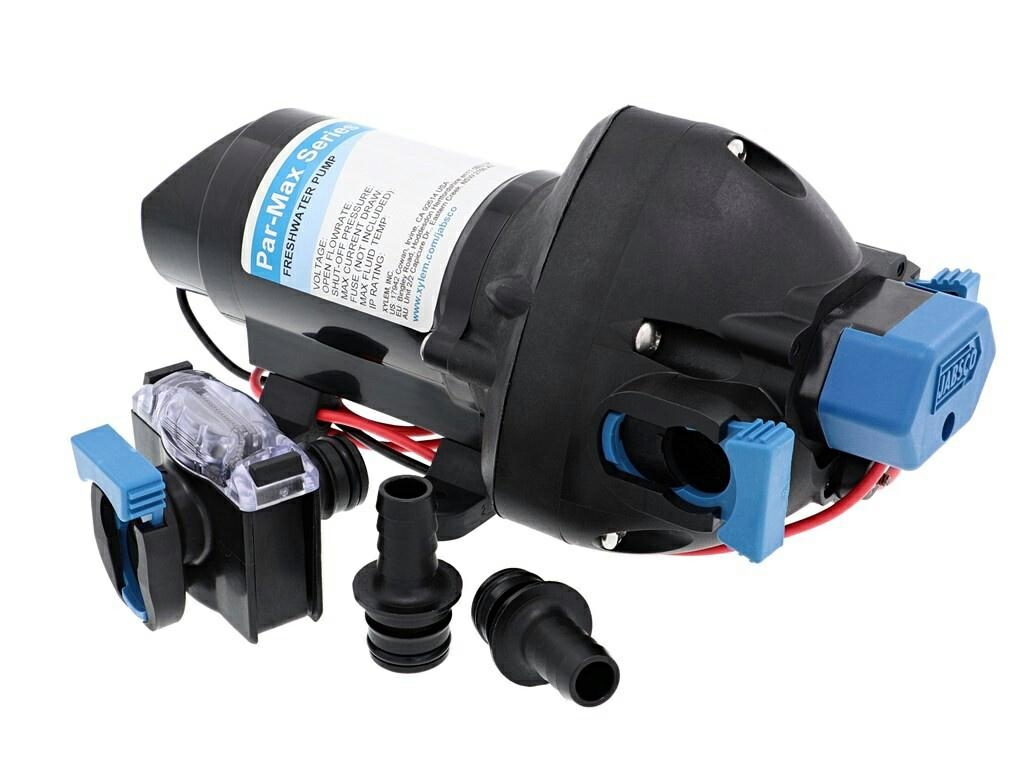

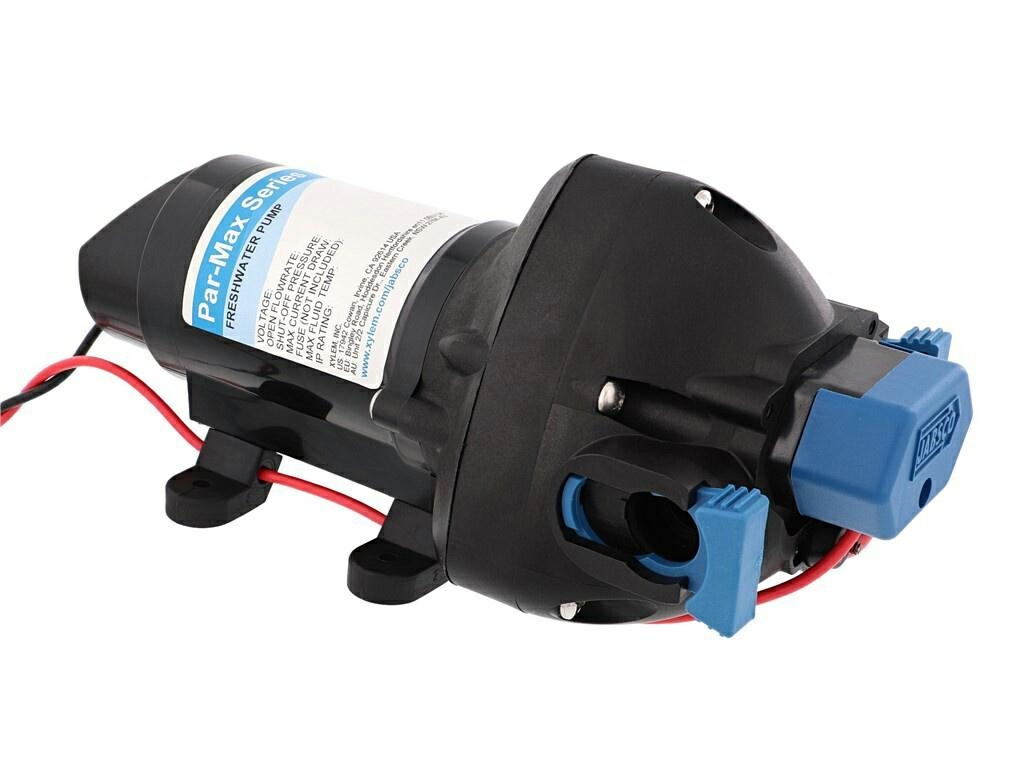

Jabsco Drinkwaterpomp ParMax 2 12V 2GPM 35psi

Description: PARMAX 2 12V 2GPM 35PSI
Nominal Voltage: 12 VDC
Application: Water Pressure System
Flowrate [GPM]: 2 GPM (8 LPM)
Max Amp Draw [AMPS]: 6
Recommended Fuse Size [Amps]: 10
Pressure Switch Off Setting [PSI]: 35 PSI (2.4 BAR)
Ports: 2x 1/2" (13mm) Straight HB

ENVIRONMENTAL CHARACTERISTICS
Duty Cycle Rating: Intermittent
Min Fluid Temperature [F]: 32ºF (0ºC)
Max Fluid Temperature [F]: 140ºF (60ºC)
Dry Self-Priming Height [ft]: 10 ft (3 m)
Ingress Protection Rating: IPX6

PHYSICAL CHARACTERISTICS
# PH Chambers: 3
Motor Construction/Mat'ls: Enclosed in protective plastic casing
Lead Gauge [AWG]: 16 AWG (1.5mm^2)
Pump Length [Inches]: 9.1" (231 mm)
Pump Height [Inches]: 4.2" (107 mm)
Pump Width [Inches]: 4.2" (107 mm)
Pump Weight (lbs): 3.2 lbs. (1.5 kg)

Vervangende pomp voor:
31295-0092
